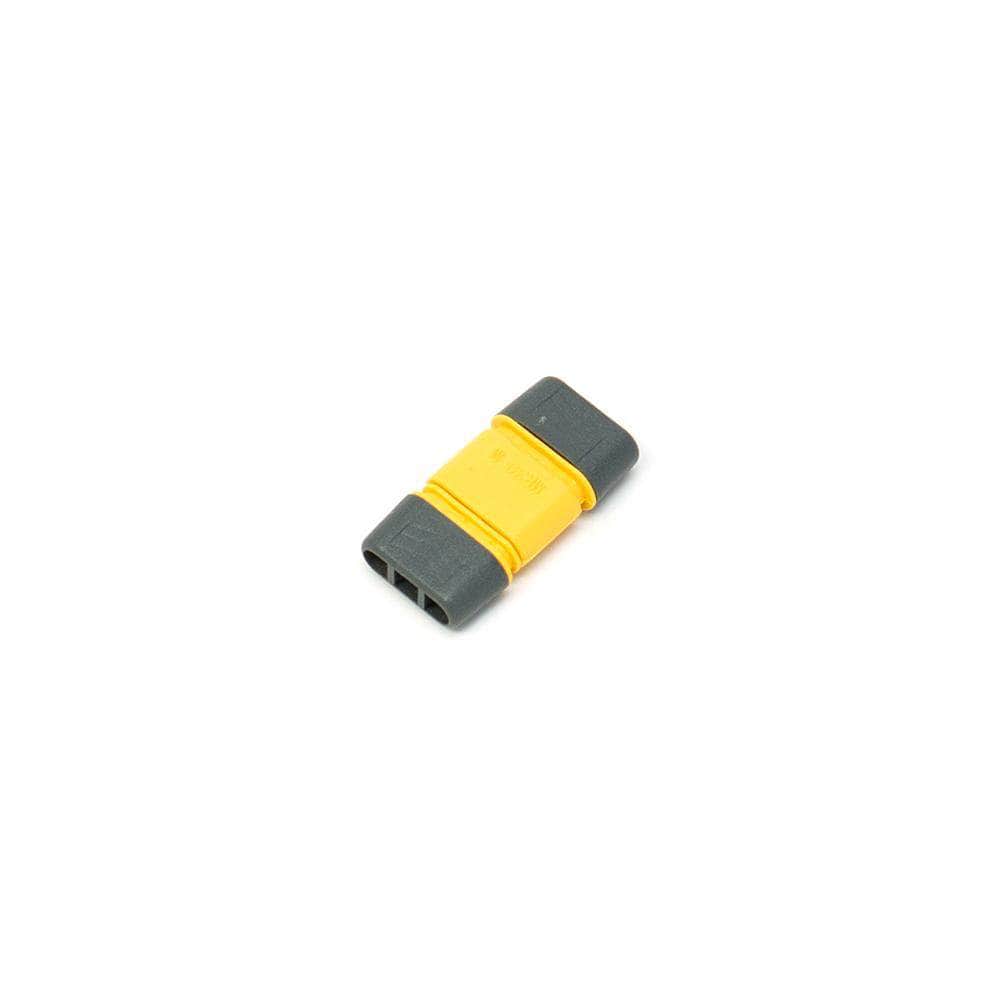

AMASS MR30 Connector Male/Female Set

These handy little connectors are basically 3 pin XT30s, They can be used on ESCs, motors, or anything with 3 wires to allow for quick connections and part swaps.

Check out all our pigtails, adapters and connectors!

Features

• Suitable for connecting ESCs and motors
• With protective sleeve
• Assistive weld foot, more stable

Specifications

• Body Material and Surface Plating: Brass and gold plated
• Insulation Material: PA66
• Original Internal Resistance: 0.8MΩ
• 500 Times Internal Resistance: 0.85MΩ
• Max. Continuous Current: 30A (within 30 minitues)
• Max. Instantaneous Current: 40A (within 1 minitues)
• Recommended Cable Spec: 18AWG 2.8mm diameter
• Recommended Soldering Spec: 400° C/3S
• Weight: 1.2g/pcs
• Insulation Degree: UL94V-0
• Machine Life: 3000 Times

Includes

• 1x AMASS MR30 Connector Male w/ Protective Shield
• 1x AMASS MR30 Connector Female  w/ Protective Shield
